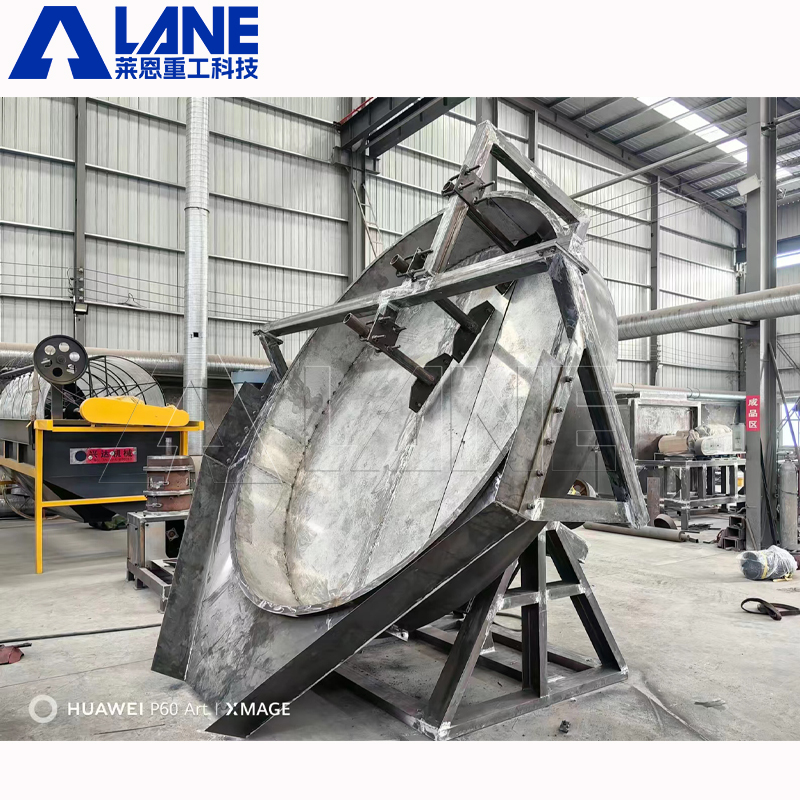

Disc granulator is a kind of equipment widely used in many industries. It is mainly used to form powdered or granular raw materials into granular products through the friction and centrifugal force of the rotating disc. Its working principle is to drive the pulley and the reducer to drive the small gear through the motor, so that the large gear rotates and bonds the material to form a spherical shape. The granulating disc usually adopts an overall arc structure, and the granulation rate can reach more than 90%, or even more than 93%.

Working Principle

By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.

1.Strong and durable structure: The disc granulator disc bottom is reinforced with multiple radiating steel plates, which is not easy to deform, and is lined with high-strength fiberglass, which is corrosion-resistant and durable.

2.Adjustable disc angle: The disc granulator is equipped with an adjustable disc angle, which allows the operator to control the size and shape of the produced particles. This flexibility is essential to meet specific fertilizer formulation requirements.

3.Wide range of applications: It is suitable for fertilizer, feed, chemical, pharmaceutical, mining, cement and other industries, and can handle non-sticky materials such as coal powder, cement, clinker, etc.

4.High efficiency and energy saving: The disc granulator has a high granulation rate and production efficiency, while low energy consumption and smooth operation.

Disc Granulator
Model	Capacity(tph)	Size(mm)	Power(kw)	Rotation Speed(rpm)	Pan Diameter(mm)	Tilt Angle(°)
LAZD-500	0.05-0.1	650600800	0.75	32	500	35-55
LAZD-1000	0.1-0.2	180012001600	3	25	1000	35-55
LAZD-1200	0.2-0.4	200014001950	3	22	1200	35-55
LAZD-1500	0.4-0.6	220018002050	4	20	1500	35-55
LAZD-1800	0.6-0.8	260020002450	5.5	16	1800	35-55
LAZD-2000	0.8-1	290021002750	7.5	16	2000	35-55
LAZD-2200	1-1.5	253021002800	7.5	18	2200	40-50
LAZD-2500	1.5-2	263026002800	7.5	16.2	2500	40-50
LAZD-2800	2-3	285030203110	7.5	14.2	2800	40-50
LAZD-3200	3-4	360030303310	11	13.5	3200	40-50
LAZD-4000	4-5	450033004000	15	12.3	4000	45
LAZD-4500	5-6	510037004400	22	10	4500	45
LAZD-6000	6-10	640050006000	75	8.9	6000	45

Get A Free Quote

Disc Granulator

Output (kg/h)：4-7t/h
Power (kw)：22
Warranty：1 Year
Brand name：LANE
Dimension(lwh)：Depend on your need
Usage：Making Compound Fertilzer
Certification：CE ISO
Rotary Speed：11r/min
